Faylond Diamond dies are widely applied to a variety of industries, implemented as drawing tools for soft wire products (copper and aluminum wire), as well as hard wire products (stainless steel, tungsten and copper plated steel wire).

The Faylond Dies are made of natural diamonds or synthetic diamonds, offering high performance in hardness and abrasion. These diamond dies are known for precision and quality through out the drawing world.

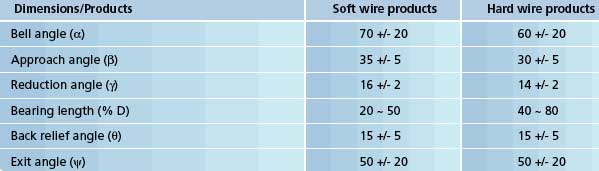

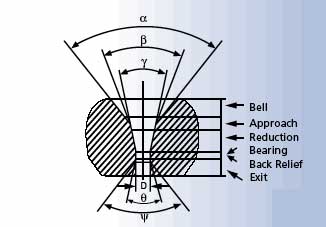

Material types, Standard specifications and tolerances are shown as follows:

MATERIAL TYPES
SINGLE CRYSTAL NATURAL DIAMOND DIES (ND)

Faylond single crystal natural diamond dies have demonstrated excellent wire drawing performance. Our die quality selection procedure and particular laser manufacturing process ensures that only the highest quality natural diamonds are chosen to become an Faylond die. Each die is precisely oriented to ensure maximum wear resistance, precisely mounted and robotically profiled. Using our particular laser process, Faylond dies have an extremely accurate die profile, a highly polished finish and accurately sized. A combination that offers uniform wire reduction, minimum die pull and excellent wire surface quality.

Benefits

Superior surface finish

Lowest die pull and friction

Excellent reducability/sizeability

Applications

Fine or ultra fine wire sizes or as a finishing die where a superior wire surface finish is required

Typical Markets

Magnet wire, stainless steel, plated copper wire, tungsten wire and precious metals

POLYCRYSTALLINE DIAMOND (SYNTHETIC DIAMOND, SD)

Polycrystalline diamond dies offer significantly longer die life, excellent wire roundness and extremely predictable die wear. Faylond dies are manufactured to the highest quality, excellent ware, long life and good wire surface finish. Faylond offer two varieties of polycrystalline diamond dies. Compax and Faylong. Compax being a harder polycrystalline diamond is more suited to soft wires like copper and aluminum. Faylond is a softer polycrystalline diamond and is more suited to hard wire applications like steel and tungsten wire drawing.

Benefits

Excellent ware and fracture resistance

Maximum die life provides highest machine efficiency with minimum down time

Available in a wide range of sizes

Predictable die wear

Applications

Nonferrous wire, especially larger sizes where demanding wear is a problem,but surface finish is less critical.

Typical Markets

Aluminum wire, copper wire, stainless steel wire and tire cord.

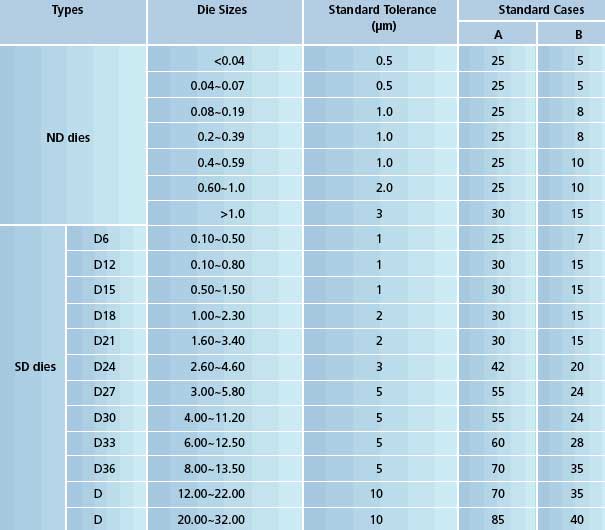

STANDARD SPECIFICATION RANGE
